N3D-FR512
Delivering halogen-free flame retardancy, high heat resistance, and robust green strength for fine-feature DLP and LCD printed parts.
High Temperature Flame-Retardant Resin
Overview
Manufactured by Arkema Sartomer
N3D-FR512 is a halogen-free, flame-retardant resin designed for DLP and LCD 3D printing applications requiring high heat performance and reliable fire resistance.
Achieving a UL-94 V-0 rating at 0.8 mm, N3D-FR512 combines excellent print accuracy for fine-feature parts with strong green strength for robust printing, easy cleanup, and straightforward post-processing. Its high HDT makes it well suited for demanding applications in electronics and transportation, including flame-retardant components and electrical connectors.
Applications
- Flame-retardant parts

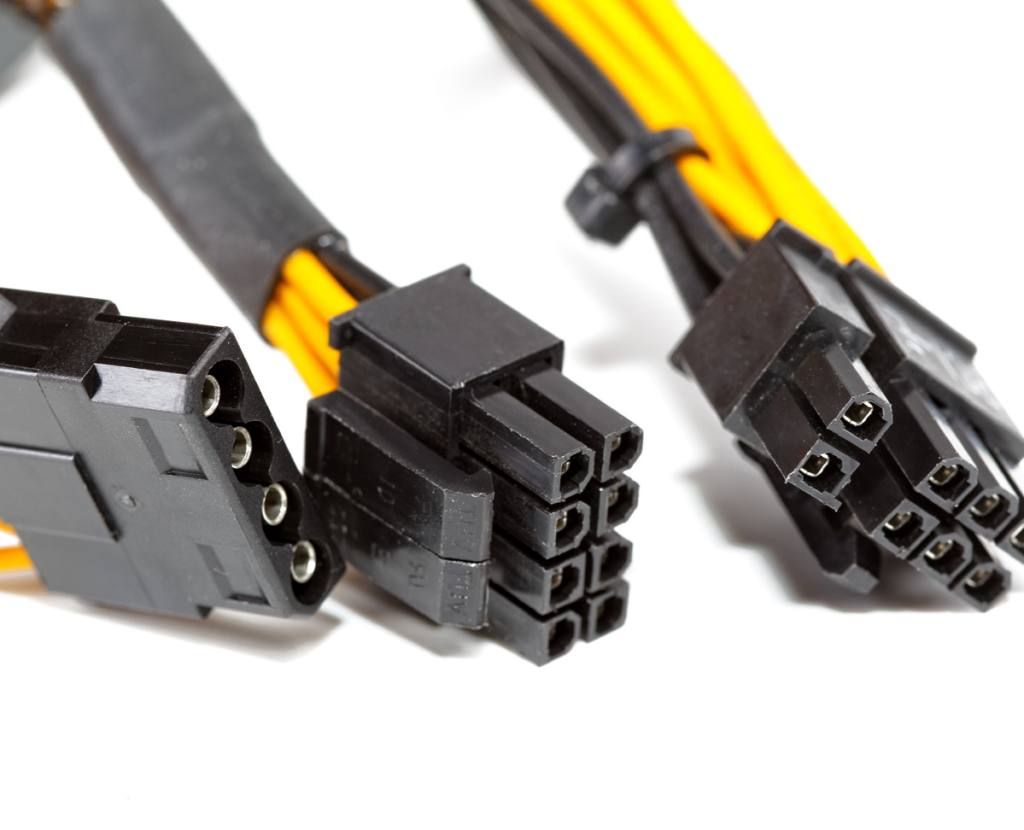

- Electrical connectors
- Electronics components
- Transportation components
- Fine-feature functional prototypes
Key benefits
- Halogen-free flame-retardant formulation
- UL-94 V-0 rating at 0.8 mm
- High HDT for demanding thermal applications
- Excellent green strength for robust printing and processing
- Good print accuracy for fine-feature parts
- Suitable for DLP and LCD printing
Resins from trusted manufacturers
Mechano (Mechnano)
Advanced photopolymer materials enhanced with discrete carbon nanotube technology for improved mechanical and electrical behaviour (including ESD-focused formulations).
- ESD-capable photopolymers
- Strength and impact improvements
Spectra Photopolymers
Radiation-curing specialists developing photopolymer materials for 3D printing, coatings and adhesives – well-suited to custom formulations and application-led performance.
- 3D printing resin development
- Coatings and adhesive know-how
Arkema
Global supplier of UV/LED/EB photocure chemistry (resins, monomers and additives) used widely across high-performance coatings and photopolymer applications.
- Photocure resins and monomers
- Broad formulation toolbox
BASF
Industrial photopolymers designed for structural performance and UV stability, with a portfolio spanning prototyping through end-use production parts.
- Ultracur3D® photopolymers
- Production-minded material range
Raplas materials are formulated and supplied in collaboration with established photopolymer and chemical manufacturers, giving you predictable processing and reliable part performance.
Material specifications
| Viscosity @ 25°C | 2000 cP |
| Flame Retardancy Rating | UL-94 V-0 @ 0.8 mm |
| Tensile Modulus | 4500 MPa |
| Tensile Strength | 42 MPa |
| Elongation at Break | 4.2% |
| Flexural Modulus | 3300 MPa |
| Flexural Strength | 57 MPa |
| Deflection | 2.0% |
| Heat Deflection Temperature @ 0.455 MPa | 170°C |
| Heat Deflection Temperature @ 1.82 MPa | 94°C |
Downloads
Access technical documentation and resources below.
📄
Technical Datasheet
PDF • 514 KB
